Tune Flash Wave-Master SR-H115
Standard Radio Corp. (SR), Tokyo
- Country
- Japan
- Manufacturer / Brand
- Standard Radio Corp. (SR), Tokyo
- Year
- 1961/1962
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 71325

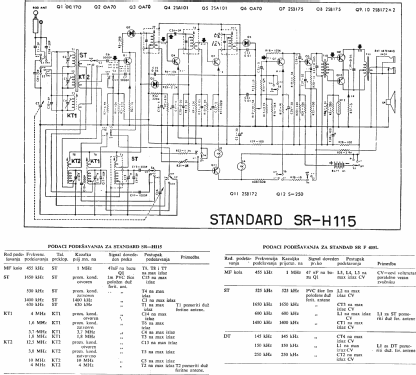

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 8
- Semiconductors
- 2SA103 2SA101 2SA101 2SB171 2SB172 2SB172 2SB175 2SB175 1N34A or. OA70 1N34A or. OA70 1N34A or. OA70
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Dry Batteries / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
- Power out
- 0.25 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Tune Flash Wave-Master SR-H115 - Standard Radio Corp. SR, Tokyo
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 210 x 102 x 45 mm / 8.3 x 4 x 1.8 inch
- Notes
-
Commutateur DX/HIFI couplé à indicateur d'accord à extinction.
This receiver was also manufactured in the Republic of Ireland.
- Net weight (2.2 lb = 1 kg)
- 0.9 kg / 1 lb 15.7 oz (1.982 lb)
- External source of data
- Jean Claude Pigeon
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Jean Claude Pigeon † 2008. See "Data change" for further contributors.
