Model Seven
Stanwood Electric Co.
- Country
- United States of America (USA)
- Manufacturer / Brand
- Stanwood Electric Co.
- Year
- 1925/1925 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 294814
Stanwood Model Seven front view
Stanwood Model Seven side view

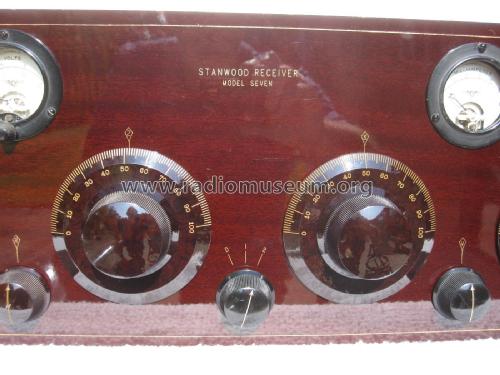

Stanwood Model Seven front panel
Stanwood Model Seven front panel meters
Stanwood Model Seven top panel
Stanwood Model Seven chassis bottom view
Stanwood Model Seven cabinet angel view
Stanwood Model Seven cabinet rear view
- Number of Tubes
- 7
- Main principle
- TRF without regeneration; 2 AF stage(s)
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Model Seven - Stanwood Electric Co.
- Shape
- Tablemodel, slant panel.
- Dimensions (WHD)
- 29 x 11.5 x 12 inch / 737 x 292 x 305 mm
- Notes
-
Slant front 7-tube TRF, 2 stage AF, last stage push-pull.
Dials: 4
Tubes: 7
Power: A, B, C battery set, AF runs 90 volts
Antenna: Switchable A-G or Loop
Meters: Jewell A/B 0-7.5-150 vdc and Jewell 0-50 ma ammeter
RF: 3 stage
AF: 2 stage, last stage push-pull
Front Panel dimensions 26 x 8.5 inches
Unknown undocumented model.
