• Country
• United States of America (USA)

• Manufacturer / Brand
• Star-Lite Electronics Corp.; New York, NY

• Year
• 1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 142674

• • Brand: Starlite

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 110 - 120 Volt

• Loudspeaker
• 2 Loudspeakers

• from Radiomuseum.org
• Model: 5M-W6 - Star-Lite Electronics Corp.;

• Shape
• Tablemodel, low profile (big size).

• Notes
• The Star-Lite Model 5M-W6 is a 5 Tube BC-SW Receiver.
  Some versions are AC operated only.

• Literature/Schematics (1)

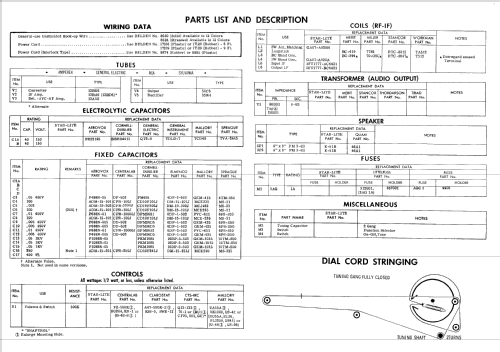

• Photofact Folder, Howard W. SAMS (Date 9-64, Set 712, Folder 11)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
