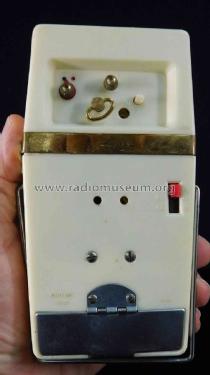

Transistor 7 CTR-701

Startone (Hotta Clock & Watch Co., Ltd.); Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1965 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 231728

 Technical Specifications

  • Number of Transistors
  • 7
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 1 x 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Transistor 7 CTR-701 - Startone Hotta Clock & Watch
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 3.375 x 6 x 1.5 inch / 86 x 152 x 38 mm
  • Notes

  • AM radio with removable alarm clock.  Dimensions include the clock at the top.

  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
