- Country
- Germany
- Manufacturer / Brand
- Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)
- Year
- 1934–1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 5065
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF with regeneration; 1 Special; 1 AF stage(s)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: LW35 - Stassfurter Licht- und
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 434 x 457 x 334 mm / 17.1 x 18 x 13.1 inch
- Notes
- Linearskala.
- Net weight (2.2 lb = 1 kg)
- 17.5 kg / 38 lb 8.7 oz (38.546 lb)
- Price in first year of sale
- 227.00 RM
- Source of data
- Katalog Radio-Zentrale Alex v. Prohaska 1935/1936 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
- Picture reference

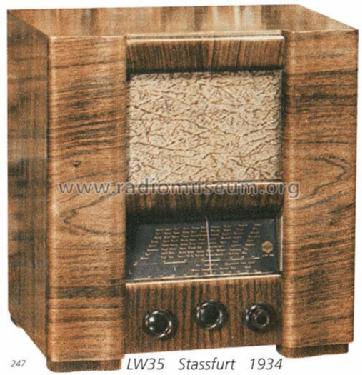

- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
