- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- State (Brand) Wright, Stevenson & Co. Ltd.; Dunedin
- Year
- 1946
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 340720

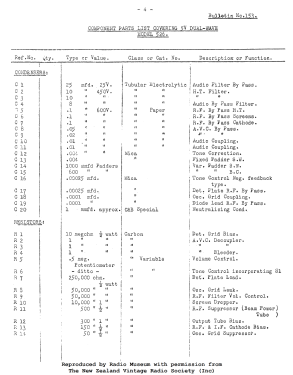

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: State 526 - State Brand Wright, Stevenson
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 295 x 220 x 210 mm / 11.6 x 8.7 x 8.3 inch
- Notes
-
5-Valve superhet dual wave table model receiver.
See also Cromwell Model 526 and Gulbransen Model 526.
Manufactured for Wright, Stevenson & Compant Ltd by Collier & Beale Ltd.
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
