• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• State (Brand) Wright, Stevenson & Co. Ltd.; Dunedin

• Year
• 1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 350912

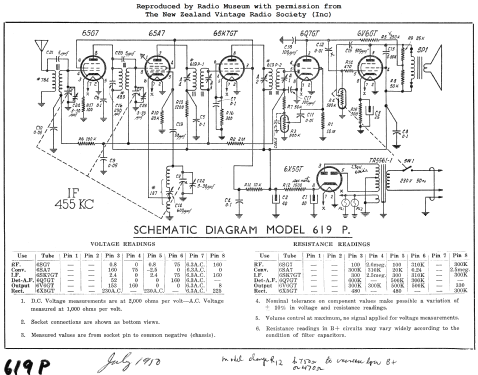

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6SG7 6SA7 6SK7GT 6Q7GT 6V6GT 6X5GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 50Hz, 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: State 619P - State Brand Wright, Stevenson

• Shape
• Tablemodel, with any shape - general.

• Notes

• 6-valve superhet with RF stage broadcast (MW) mantel receiver.

  See also Gulbransen 619P.

  Manufactured by Collier & Beale Ltd for Wright Stephenson & Co Ltd.

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.

• Other Models

• Here you find 11 models, 1 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from State (Brand) Wright, Stevenson & Co. Ltd.; Dunedin
