Lautsprecher Kompaktbox B 9301
Statron, VEB (Ostd.); Fürstenwalde
- Country
- Germany
- Manufacturer / Brand
- Statron, VEB (Ostd.); Fürstenwalde
- Year
- 1974 ??
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 256011

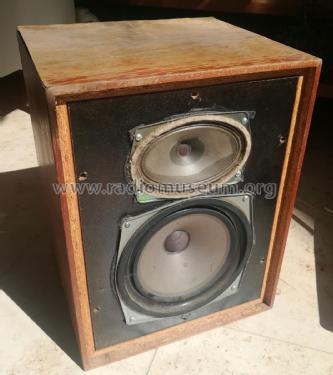

Katalogabbildung
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Lautsprecher Kompaktbox B 9301 - Statron, VEB Ostd.;
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 305 x 400 x 270 mm / 12 x 15.7 x 10.6 inch
- Notes
-
2-Wege Kompaktbox, Volumen 20 l, Nennbelastbarkeit 15W.
Tieftonlautsprecher L2901, Hochtonlautsprecher L5904 (ovaler Konuslautsprecher mit geschlossenem Blechkorb)
Übertragungsbereich 50...20.000 Hz. Impedanz 4 Ω.
Lautsprecherbox für HSV 920 HiFi. Gehäusevarianten: Nussbaum dunkel (furniert) und Holz, weiß (lackiert).
- Net weight (2.2 lb = 1 kg)
- 6.5 kg / 14 lb 5.1 oz (14.317 lb)
- Price in first year of sale
- 225.00 Mark
- Mentioned in
- Sortimentskatalog Elektroakustik (DDR, 1976)
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
