• Country
• Australia

• Manufacturer / Brand
• Standard Telephones and Cables Pty, Ltd (STC), Sydney

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 300580

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

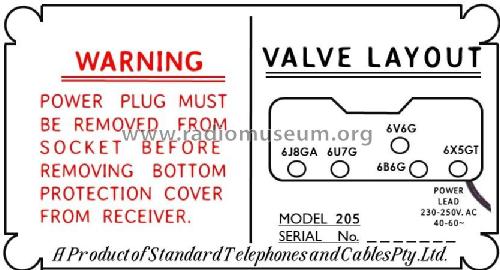

• 6J8GA 6U7G 6B6G 6V6GT 6X5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 200-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: 205TAA Ch= 205 - Standard Telephones and Cables

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

• This cream case version has the model designation, 205TAA.

  The chassis is the same as Model 205T.

• Price in first year of sale
• 27.96 AUS £

• Literature/Schematics (1)
• Australian Official Radio Service Manual AORSM (Volume 7, 1949, Page 347.)

• Author
• Model page created by Martin Kent. See "Data change" for further contributors.
