• Country
• Australia

• Manufacturer / Brand
• Standard Telephones and Cables Pty, Ltd (STC), Sydney

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 165695

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6D6 6B7 42 80

• Main principle
• Superheterodyne (common); ZF/IF 450 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 200/240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

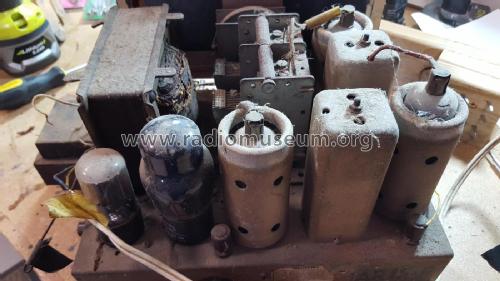

• Model: 5030H Ch= 5030 - Standard Telephones and Cables

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Model 5030 H is outstanding value for the money.
  or 23 guineas you are offered a 5-valve A.C. world-wave receiver in a most attractive lowboy cabinet. The inch anti-glare dial set in chromium escutcheon indicates the station tunings clearer than any dial you have seen.

  Other features include fully automatic volume control, tone control, metal dust core transformers, and 8-inch dynamic speaker.

• Price in first year of sale
• 24.00 Aus£

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. I

• Mentioned in

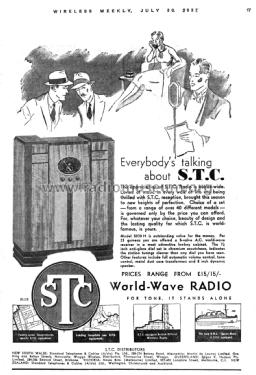

• Wireless Weekly (Australia) (July 30, 1937, Page 17)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.

• Other Models

• Here you find 614 models, 263 with images and 302 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Standard Telephones and Cables Pty, Ltd (STC), Sydney
