- Country
- Australia
- Manufacturer / Brand
- Standard Telephones and Cables Pty, Ltd (STC), Sydney
- Year
- 1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 210420
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz; 1 AF stage(s); Anode bend detection
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

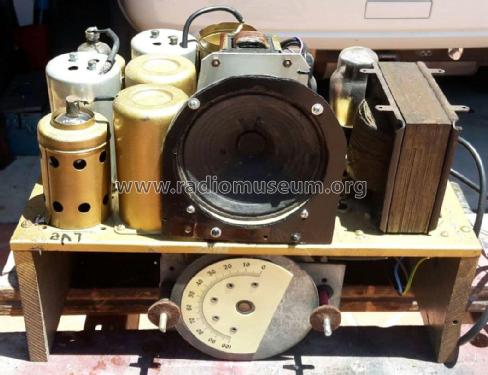

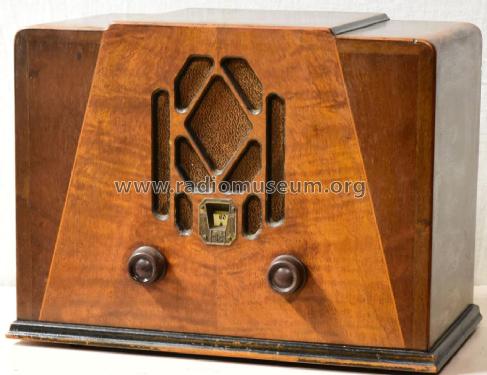

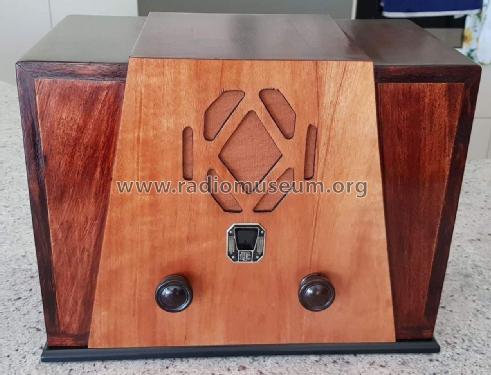

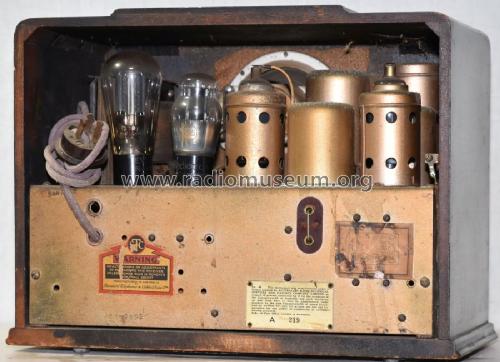

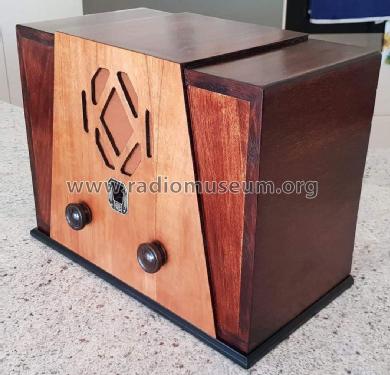

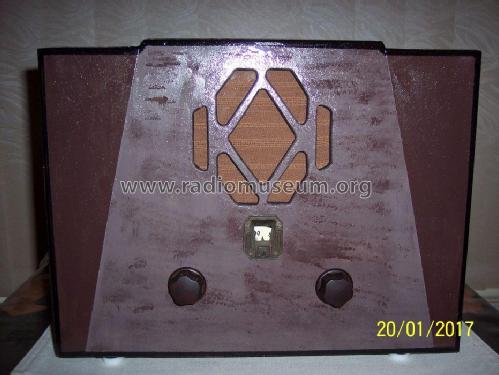

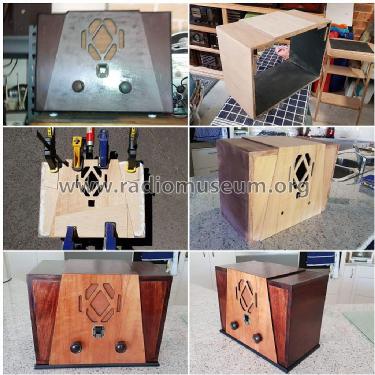

- Model: 550 Ch= 55 - Standard Telephones and Cables
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Mentioned in
- Wireless Weekly 23/2/34 P8.
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
