Forbes A140F Ch= A140
Standard Telephones and Cables Pty, Ltd (STC), Sydney
- Country
- Australia
- Manufacturer / Brand
- Standard Telephones and Cables Pty, Ltd (STC), Sydney
- Year
- 1947 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 289206
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite case
- from Radiomuseum.org

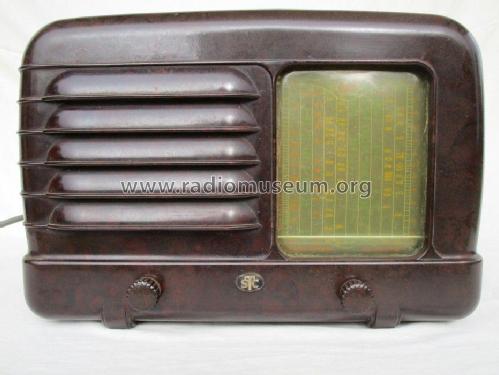

- Model: Forbes A140F Ch= A140 - Standard Telephones and Cables
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 335 x 230 x 190 mm / 13.2 x 9.1 x 7.5 inch
- Notes
-
The chassis in this model is similar to the 140 except that a permanent magnet speaker is used.
- Literature/Schematics (1)
- - - Manufacturers Literature (STC Radio Service Bulletin, Issue No. 17, Sept 1947.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
