Forbes A250F Ch= A250
Standard Telephones and Cables Pty, Ltd (STC), Sydney
- Country
- Australia
- Manufacturer / Brand
- Standard Telephones and Cables Pty, Ltd (STC), Sydney
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 228441
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 200; 240 Volt Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Material
- Bakelite case
- from Radiomuseum.org

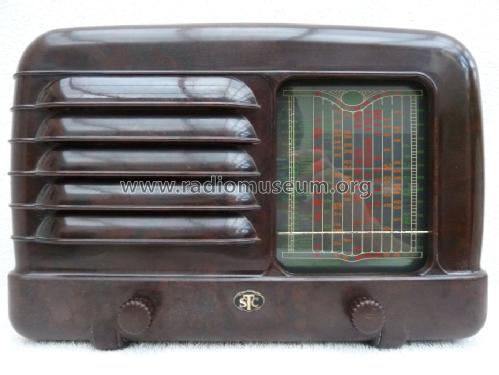

- Model: Forbes A250F Ch= A250 - Standard Telephones and Cables
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 13 x 9 x 7 inch / 330 x 229 x 178 mm
- Notes
-
The 1947 AORSM lists two versions of STC A250. The primary listing for the A250 is for a radiogram which is also listed on radiomuseum.org. There is also an A250 bakelite mantel radio that shares the schematic and technical details (minus the actual record changer) with the A250 radiogram.
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. VI
- Literature/Schematics (1)
- - - Manufacturers Literature (STC Radio Service Bulletin for A250.)
- Literature/Schematics (2)
- Australian Official Radio Service Manual AORSM (Volume 6, 1948, Page 416.)
- Author
- Model page created by John Pratt. See "Data change" for further contributors.
