• Country
• Australia

• Manufacturer / Brand
• Standard Telephones and Cables Pty, Ltd (STC), Sydney

• Year
• 1947 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 251322

• Number of Tubes
• 4

• Valves / Tubes
• 6G8G 6J8G 6AG6G 6X5GT

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 230 - 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 4.5 inch = 11.4 cm

• Material
• Bakelite case

• from Radiomuseum.org

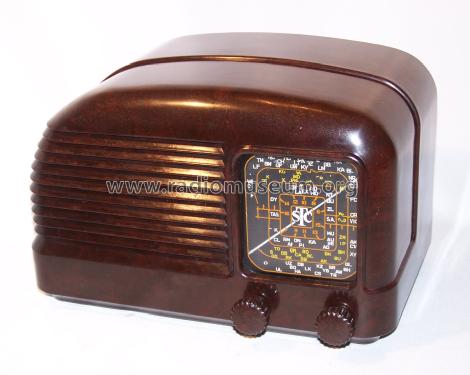

• Model: Bantam D-141 - Standard Telephones and Cables

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 9.5 x 6 x 6 inch / 241 x 152 x 152 mm

• Notes

• STC Bantam Model D-141.
  Made by Standard Telephones and Cables Pty. Ltd  (STC) Sydney





• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• Price in first year of sale
• 37.50 AUS $

• Mentioned in
• The Best Years of Australian Radio by Rod Smith

• Author
• Model page created by Bruce Wilkie. See "Data change" for further contributors.
