Commander Ch= T236 (TV section)
Standard Telephones and Cables Pty, Ltd (STC), Sydney
- Country
- Australia
- Manufacturer / Brand
- Standard Telephones and Cables Pty, Ltd (STC), Sydney
- Year
- 1960/1961
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 302300
Mingay's Price Service, 2/61 & 8/61.
- Number of Tubes
- 25
- Valves / Tubes
- 6ES8 6U8 6AU6 6AU6 6BM8 6BY7 6BX6 6BX6 6BX6 6U8 6AQ5 6AU6 6CS6 6BM8 6EA8 6CM5 1B3GT 6AL3 23WP4
- Number of Transistors
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 200-280 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Commander Ch= T236 - Standard Telephones and Cables
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 56 x 36 x 18.5 inch / 1422 x 914 x 470 mm
- Notes
-

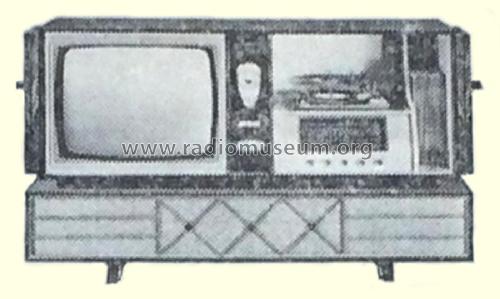

Combination TV-Stereo Radiogram. 23" TV & dual-wave 6 valve, 4-speed stereophonic radiogram. Radiogram details not known. Valve line up is for the TV section only. Polaroid screen filter extra (£431/11/-).
Cabinet finishes available in Walnut, Maple & Mahogany.
- Price in first year of sale
- 418.95 AUS £
- Literature/Schematics (1)
- J.R. Publications Television Service Handbook (L.J. Series Vol. 1, 1962, Page S8 (TV section).)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
