FM Power Amplifier AB 25

STE s.r.l.; Milano

Data
Forum
Pictures
Collections

  • Year
  • 1977 ?
  • Category
  • RF (Radio Frequency-) Amplifier
  • Radiomuseum.org ID
  • 337945

 Technical Specifications

  • Main principle
  • Radio Frequency Amplification only
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Powered by external power supply or a main unit. / CC: 10-15 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: FM Power Amplifier AB 25 - STE s.r.l.; Milano
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 57 x 82 x 155 mm / 2.2 x 3.2 x 6.1 inch
  • Notes

  • Amplificatore di potenza operante nella gamma 144-146 MHz in FM. Commutazione automatica RX/TX. Protezione contro le inversioni di polarità e disadattamenti del carico. Impedenza di ingresso e uscita: 50 Ω.

    Trasmissione:
    Potenza di ingresso 3,5 Watt (da 1 a 9 max).
    Potenza di uscita: 20 Watt (max 25 a 12,5 V).
    Guadagno di potenza: 7,5 dB (a 12,5 V, 20 Watt).

    Ricezione:
    Guadagno: 8 dB a 12,5 V.
    Banda passante: ± 1,5 MHz a - 3 dB; ± 10 MHz a - 20 dB.

  • Net weight (2.2 lb = 1 kg)
  • 0.7 kg / 1 lb 8.7 oz (1.542 lb)
  • Price in first year of sale
  • 75,000.00 ITL
  • Mentioned in

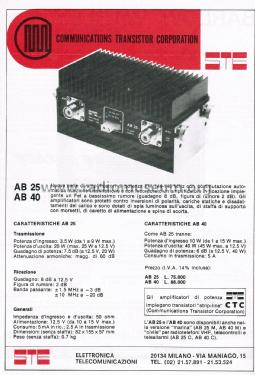

  • -- Original prospect or advert (“Radio Rivista” official organ of "ARI Amat. Radio Assoc." of Italy, number 12, December 1977.)
