- Country
- United States of America (USA)
- Manufacturer / Brand
- Steelman Phono & Radio Co.; Mount Vernon (NY)
- Year
- 1959 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 139471
Sams photofact.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 4 inch = 10.2 cm
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

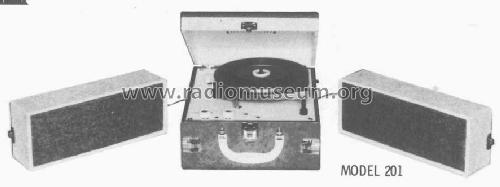

- Model: 201 - Steelman Phono & Radio Co.;
- Shape
- Tablemodel, with any shape - general.
- Notes
- AC operated stereo phono amplifier with record player and 2 separat speakers. Sams photofact, set 506, folder 18, date 11-60, features the Steelman models 201, 202 and 403 as the same schematic.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 506 folder 18 date 11-60)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
