- Country
- United States of America (USA)
- Manufacturer / Brand
- Steelman Phono & Radio Co.; Mount Vernon (NY)
- Year
- 1959 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 149130
Sams photofact.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- 25EH5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 4 inch = 10.2 cm
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

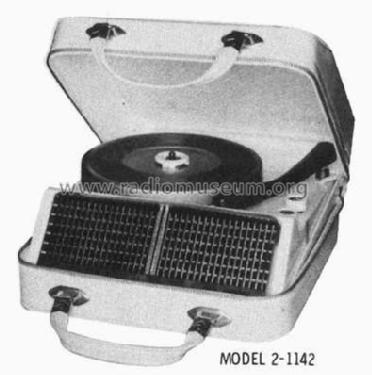

- Model: 2-1142 - Steelman Phono & Radio Co.;
- Shape
- Tablemodel, with any shape - general.
- Notes
-

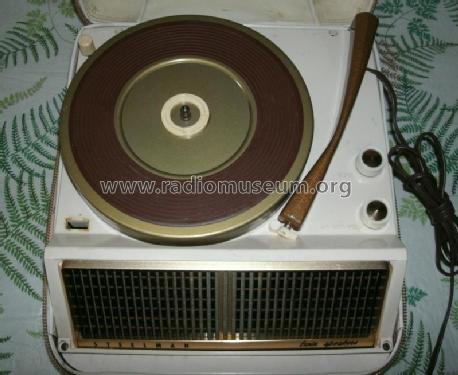

AC operated phono amplifier with 4 speed manual record player. Sams photofact set 499 folder 16 date 9-60 features the Steelman models 2-1132 and 2-1142 as the same schematic.
The carry case is a vinyl over cardboard (or similar) with a zipper closure.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 499 folder 16 date 9-60)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
