- Country
- United States of America (USA)
- Manufacturer / Brand
- Steelman Phono & Radio Co.; Mount Vernon (NY)
- Year
- 1952 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 262938

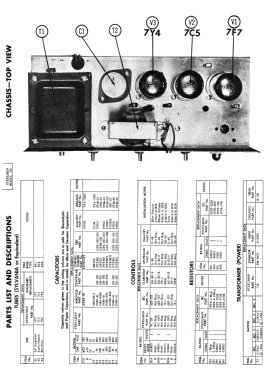

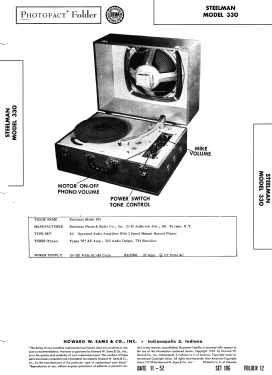

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: 330 - Steelman Phono & Radio Co.;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 18 x 12 x 14 inch / 457 x 305 x 356 mm
- Notes
-
Steelman model 330 is an AC operated audio amplifier with 3 speed manual record player.
Classroom type record player, with detachable speaker and separate microphone input.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 186, folder 12, dated 11-52)
- Author
- Model page created by Dan Campbell. See "Data change" for further contributors.
