- Country
- United States of America (USA)
- Manufacturer / Brand
- Steelman Phono & Radio Co.; Mount Vernon (NY)
- Year
- 1958 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 320995

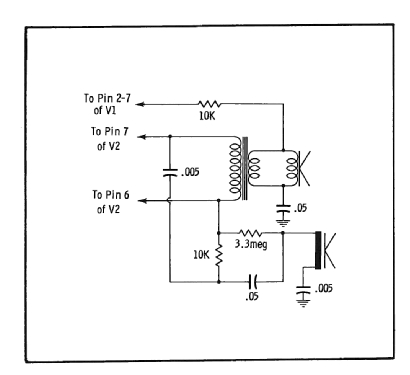

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 3A16-1 - Steelman Phono & Radio Co.;
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Notes
-
The Steelman Model 3A16-1 is an AC Operated 3 Tube Phono Amplifier with 3 Speed Automatic Record Changer.
- Mentioned in
- Photofact Folder, Howard W. SAMS (Production Changes Bulletin 200 dated 2-58)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 362 Folder 2 dated 56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
