- Country
- United States of America (USA)
- Manufacturer / Brand
- Steelman Phono & Radio Co.; Mount Vernon (NY)
- Year
- 1954
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 142860
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- from Radiomuseum.org
- Model: 3A2 - Steelman Phono & Radio Co.;
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Notes

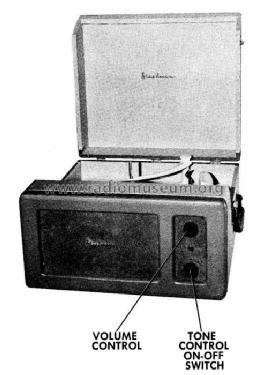

- The Steelman Model 3A2 is an AC Operated 3 Tube Phono Amplifier with 3 Speed Automatic Record Changer.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 9-54, Set 250, Folder 20)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
