• Country
• United States of America (USA)

• Manufacturer / Brand
• Steelman Phono & Radio Co.; Mount Vernon (NY)

• Year
• 1959 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 148959

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 12AX7 50C5 50C5

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: 602 phono console - Steelman Phono & Radio Co.;

• Shape
• Console, Lowboy (legs < 50 %).

• Notes
• AC operated stereo phono amplifier with 4 speed automatic record changer. Sams photofact set 500 folder 16 date 9-60 features the Steelman models 405 and 602 as the same schematic.

• Literature/Schematics (1)

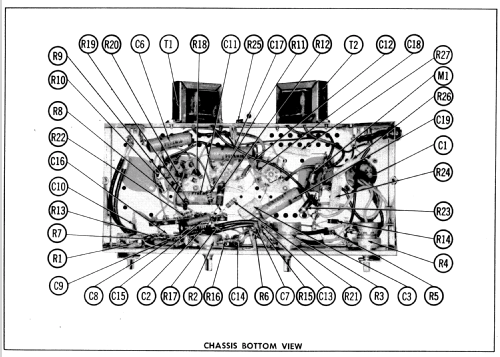

• Photofact Folder, Howard W. SAMS (Set 500 folder 16 date 9-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
