Transitape 2-7111

• Country
• United States of America (USA)

• Manufacturer / Brand
• Steelman Phono & Radio Co.; Mount Vernon (NY)

• Year
• 1959

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 132828

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• 2N405 2N405 2N405 2N405 2N405 2N405 2N405

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Dry Batteries

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• from Radiomuseum.org
• Model: Transitape 2-7111 - Steelman Phono & Radio Co.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 6.5 x 9.75 x 2.9 inch / 165 x 248 x 74 mm

• Notes
• Steelman Transitape 2-7111;
  Two speed 1.83 & 3.75 ips, dual track monaural 3" reel tape recorder. Recording time 8 to 64 minutes depending to speed and tape type.

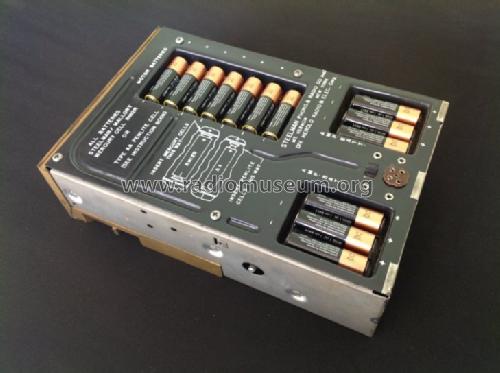

  Power Supply: 13 Cells Mallory RM-12R or may be operated on 220/110V AC Power Source Adapter Nr. 2-7155.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (12-1959 Set 466 Folder 12)
