- Country
- United States of America (USA)
- Manufacturer / Brand
- Steinite Radio Co., Warwick Mfg.Co.; Atchinson
- Year
- 1931
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 92260
-
- Brand: Marvel
Consales
Korrektur eines Widerstandswertes,

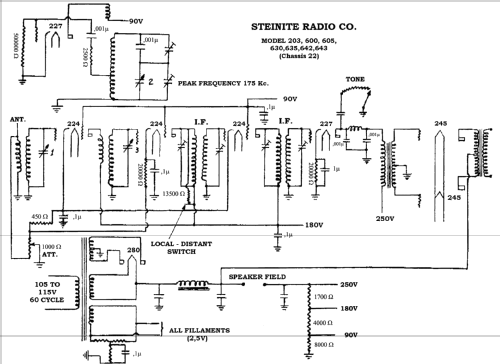

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 175 kHz; 1 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 105-115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 605 Ch= 22 - Steinite Radio Co., Warwick
- Notes
- Push-pull audio amplifier.
- Circuit diagram reference
- Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
