• Country
• United States of America (USA)

• Manufacturer / Brand
• Steinite Radio Co., Warwick Mfg.Co.; Atchinson

• Year
• 1927

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 59985

• • Brand: Marvel

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• UX199 or CX299 UX199 or CX299 UX199 or CX299 UX199 or CX299 UX199 or CX299 UX112 or CX112 UX280 or CX380 or UX213 or CX313

• Main principle
• TRF without regeneration; 2 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 95-130 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: 991 - Steinite Radio Co., Warwick

• Shape

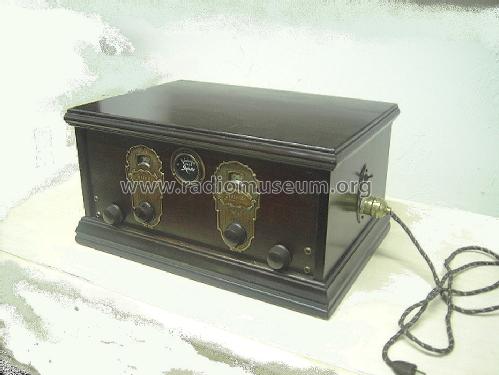

• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 28 x 10 x 13.5 inch / 711 x 254 x 343 mm

• Notes

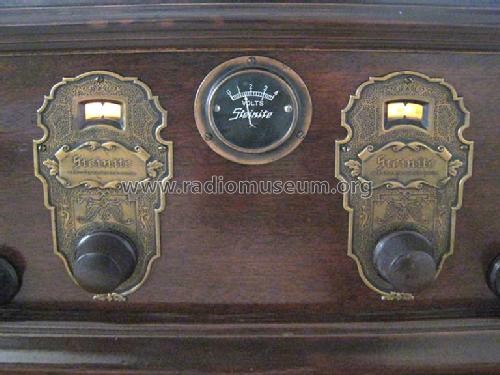

• Chassis common for models 991, 992 and 993. Two front window dials, center voltmeter. Built-in aerial.

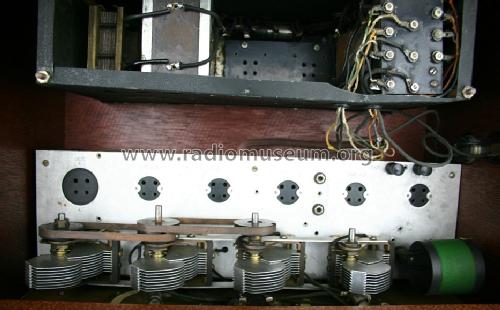

  The chassis is equipped with two sockets for rectifying tubes. Before UX280 or CX380 types were available, the set could be operated with two UX213 or two CX313 type rectifiers (with a total of 8 tubes). When using the newer types, only one of the two sockets may be used (total of 7 tubes).

  Price with tubes. Early sets provided with two 213 or 313 types.

  Mahogany cabinet in DUCO finish.

• Net weight (2.2 lb = 1 kg)
• 20 kg / 44 lb 0.8 oz (44.053 lb)

• Price in first year of sale
• 120.75 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965 (Rider's 1-5)

• Literature/Schematics (1)
• Collector's Guide to Antique Radios (7th Edition)
