• Country
• United States of America (USA)

• Manufacturer / Brand
• Steinite Radio Co., Warwick Mfg.Co.; Atchinson

• Year
• 1924 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 218471

• • Brand: Marvel

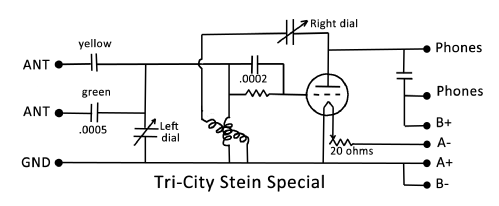

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• UV200

• Main principle
• TRF with regeneration

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org
• Model: Stein Special - Steinite Radio Co., Warwick

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 8.5 x 3 x 7.5 inch / 216 x 76 x 191 mm

• Notes
• Steinite Stein Special Regenerative Receiver. This set was manufactured by Tri-City Radio Electric Supply Co. Atchison, Kansas.

• Author
• Model page created by Alan Larsen. See "Data change" for further contributors.
