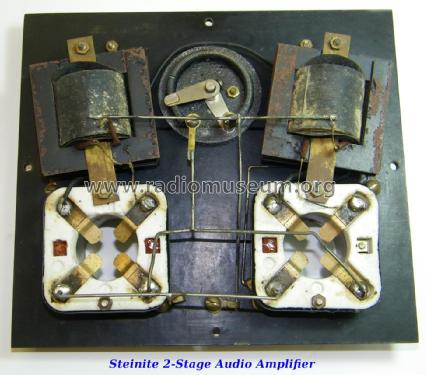

Two-Stage Audio Amplifier

Steinite Laboratories; Atchison (KS)

  • Year
  • 1925
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 281664

 Technical Specifications

  • Number of Tubes
  • 2
  • Main principle
  • Audio-Amplification; 2 AF stage(s)
  • Wave bands
  • - without
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case, TUBES VISIBLE.
  • from Radiomuseum.org
  • Model: Two-Stage Audio Amplifier - Steinite Laboratories;
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 8.75 x 3.5 x 7.5 inch / 222 x 89 x 191 mm
  • Notes
  • 1925 Steinite Two-Stage Audio Amplifier for use with the Stein Special or Paris Special 1-Tube Regenerative receivers to increase volume to drive a horn speaker.

  • Price in first year of sale
  • 15.00 $
  • Mentioned in
  • April, 1925 Popular Mechanics magazine page 162
  • Author
  • Model page created by Alan Larsen. See "Data change" for further contributors.
