- Country
- Great Britain (UK)
- Manufacturer / Brand
- Stella Radio & Television Company Ltd.; London
- Year
- 1964
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 127965

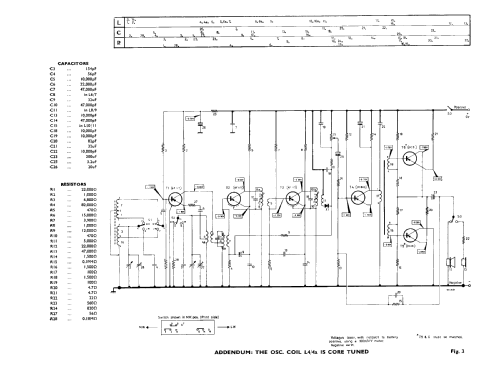

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / 4 × 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
- Power out
- 0.12 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: ST425A - Stella Radio & Television
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 5.5 x 3.75 x 1.5 inch / 140 x 95 x 38 mm
- Notes
- Similar to Philips L1G30T.
- Net weight (2.2 lb = 1 kg)
- 0.4 kg / 0 lb 14.1 oz (0.881 lb)
- Source of data
- -- Schematic
- Literature/Schematics (1)
- Paul Stenning CD Vol 2
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
