- Country
- Great Britain (UK)
- Manufacturer / Brand
- Stella Radio & Television Company Ltd.; London
- Year
- 1965 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 176445
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Dry Batteries / 6 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1.8 W (unknown quality)
- from Radiomuseum.org
- Model: ST570 - Stella Radio & Television
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
- Tropicalised, portable record player. Battery type U2.
- Source of data
- -- Schematic
- Circuit diagram reference

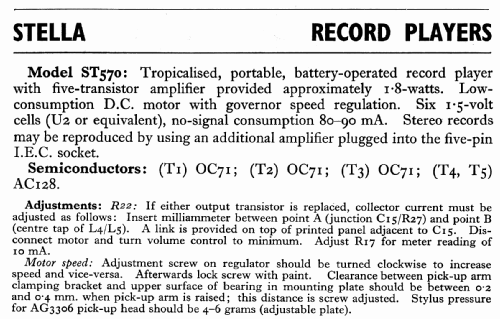

- Radio and TV Servicing books (R&TVS) book
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
