- Country
- Great Britain (UK)
- Manufacturer / Brand
- Stella Radio & Television Company Ltd.; London
- Year
- 1969 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 128260
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 2 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: ST8003 - Stella Radio & Television
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 15.75 x 8 x 17 inch / 400 x 203 x 432 mm
- Notes
- Portable record player, BSR 4 speed changer fitted. Speaker 7x4 inches.
- Net weight (2.2 lb = 1 kg)
- 7.3 kg / 16 lb 1.3 oz (16.079 lb)
- Source of data

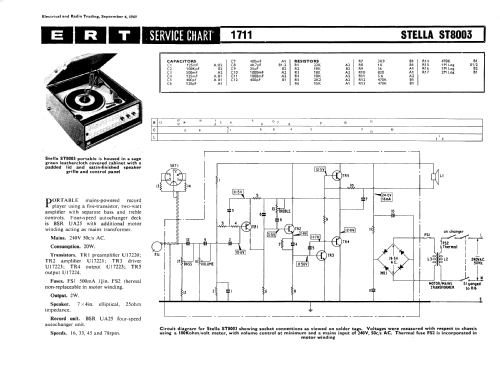

- -- Schematic
- Literature/Schematics (1)
- ERT Service Chart 1711 dated September 4 1969
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
