• Year
  • 1925
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 327904

 Technical Specifications

  • Number of Tubes
  • 1
  • Main principle
  • TRF (Tuned-Radio-Frequency but use of regeneration unknown)
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Various materials
  • from Radiomuseum.org

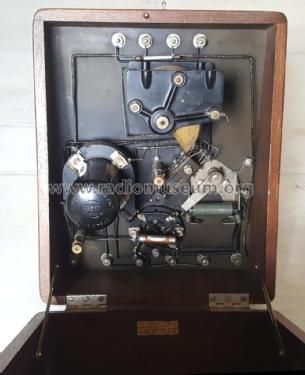

  • Model: One Anodion Type R1586 - Sterling Telephone & Electric
  • Shape
  • Tablemodel, slant panel.
  • Dimensions (WHD)
  • 9 x 7 x 11 inch / 229 x 178 x 279 mm
  • Notes
  • Sterling 'One Anodion' Type R1586, by Sterling Telephone & Electric Co.
    Ltd. 1924. BBC/PMG stamp but no GPO Reg.No. 1-v Bat, 0-180 dcg, 275/7,600m,
    for headphone use, black ebonite control panel, walnut case. 7 in. x 9 in. x 11 in.
    £7.7s.0d.

    The tube LS1 from MO is possible in 1925, not before.

  • Price in first year of sale
  • 7.35 £
  • Mentioned in
  • Radio! Radio! (Page 80 - One Anodion type R1586 1924)
  • Author
  • Model page created by Heinz Horbaschek. See "Data change" for further contributors.
