• Country
• United States of America (USA)

• Manufacturer / Brand
• Sterling Manuf. Co.; Cleveland, Ohio

• Year
• 1925–1930

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 102768

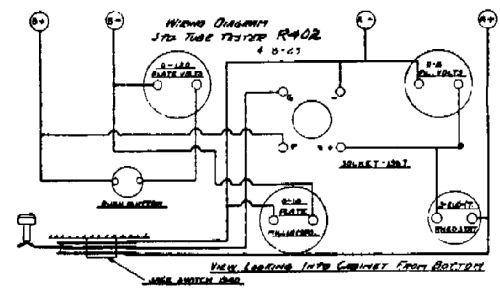

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Tube Tester R-402 - Sterling Manuf. Co.; Cleveland

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 8.5 x 3 x 6.5 inch / 216 x 76 x 165 mm

• Notes
• The Sterling model R-402 is a "Professional tube tester". It is listed in the Allied catalog 1930 (as also R-410 and R-522).

• Price in first year of sale
• 25.00 $

• Circuit diagram reference
• Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)

• Mentioned in
• Rider's 2-1

• Literature/Schematics (1)
• Chicago Salvage Stock Store catalogue, 1928? and Allied catalog 1930.

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
