• Country
• United States of America (USA)

• Manufacturer / Brand
• Sterling Manuf. Co.; Cleveland, Ohio

• Year
• 1928

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 165008

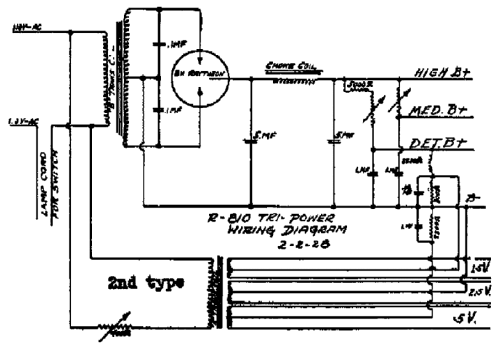

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• BH

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• - - No sound reproduction output.

• from Radiomuseum.org
• Model: R-810 [Tri-Power] - Sterling Manuf. Co.; Cleveland

• Notes
• Power supply: 1.5; 2.5; 5 VAC for filaments. Three +B voltages.
  Two slightly different models with same designation.

• Circuit diagram reference
• Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)

• Mentioned in
• Rider's 2-2

• Author
• Model page created by Götz Linss † 27.06.21. See "Data change" for further contributors.

• Other Models

• Here you find 60 models, 37 with images and 31 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sterling Manuf. Co.; Cleveland, Ohio
