• Country
• Great Britain (UK)

• Manufacturer / Brand
• Sterling Telephone & Electric Co. Ltd.; London

• Year
• 1916

• Category
• Commercial Transmitter (TX not Transceiver)

• Radiomuseum.org ID
• 276026

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Transmitter

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Other, details in remarks or not known. / 24 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

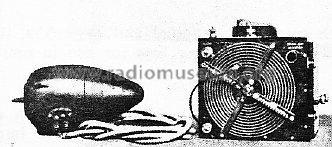

• Model: Sterling Type 52A Transmitter - Sterling Telephone & Electric

• Shape
• Chassis only or for «building in»

• Notes

• The Sterling 52A was similar to the Type 52 and No. 1-4 spark transmitters.

  See also the Airborne Spark W/T Transmitter 1

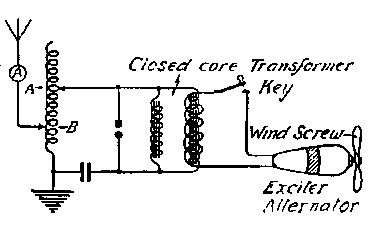

  It was powered by an alternator driven by a wind screw placed in the slipstream of the propeller. The input power was 150 Watts at 24V.

  The wavelength could be set from 100 to 335 metres.

• Mentioned in
• HRSA Radiowaves, No. 23 January 1988

• Author
• Model page created by Gary Cowans. See "Data change" for further contributors.
