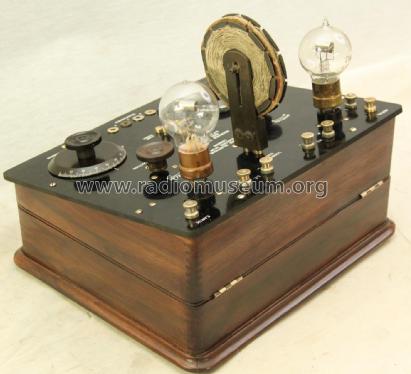

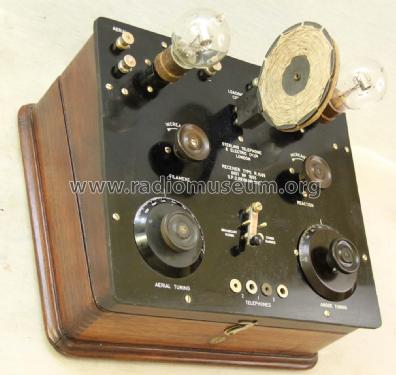

Two-Valve Receiver Type R.1589

Sterling Telephone & Electric Co. Ltd.; London

  • Year
  • 1925/1926
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 278131

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Main principle
  • TRF with regeneration
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Storage and/or dry batteries / 6 & 60-100 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material

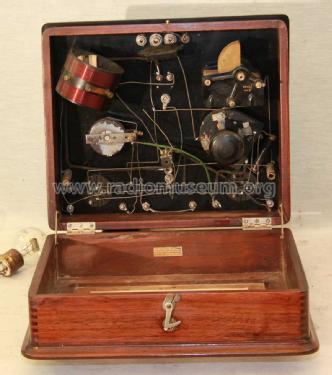

  • Wooden case, TUBES VISIBLE.
  • from Radiomuseum.org
  • Model: Two-Valve Receiver Type R.1589 - Sterling Telephone & Electric
  • Shape
  • Tablemodel, slant panel.
  • Dimensions (WHD)
  • 340 x 180 x 290 mm / 13.4 x 7.1 x 11.4 inch
  • Net weight (2.2 lb = 1 kg)
  • 3.5 kg / 7 lb 11.3 oz (7.709 lb)
  • Literature/Schematics (2)
  • The Radiophile, Summer, 1991
  • Author
  • Model page created by Norbert Konersmann. See "Data change" for further contributors.
