• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG

• Year
• 1971/1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 94473

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage

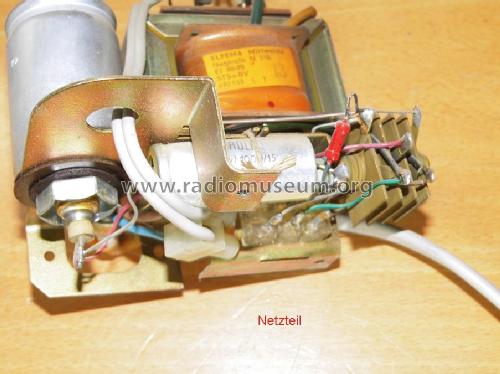

• Alternating Current supply (AC) / 160-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

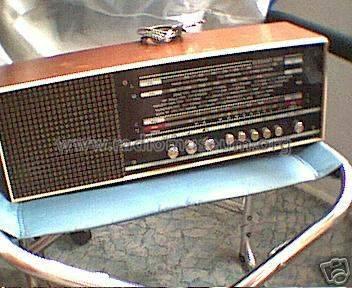

• Model: Elegant 6360 - Stern-Radio Sonneberg, VEB,

• Shape

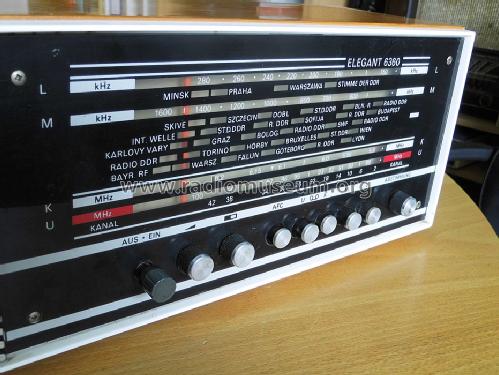

• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 500 x 145 x 156 mm / 19.7 x 5.7 x 6.1 inch

• Notes
• gespreiztes 49-m-Band. Wurde in der BRD unter "Bruns" verkauft. Teil einer Serie von unterschiedlichen Gehäuseformen.

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Source of data
• - - Data from my own collection

• Mentioned in
• Funkverlag Hein, Service-DVD

• Author
• Model page created by Karsten Michel. See "Data change" for further contributors.
