• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...

• Year
• 1958/1959

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 95590

• • alternative name: Fernsehgerätewerk Staßfurt

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• EC92 PCF82 EF80 PL83 ECC82 PL81 PY81 EY86 PABC80 PL84 PCL82 B43M1

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

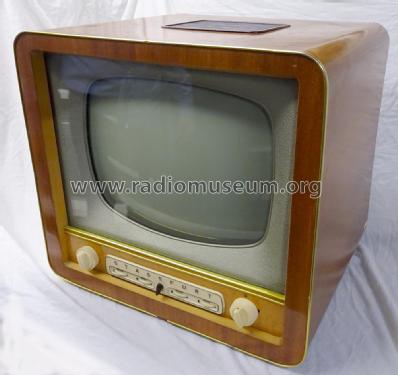

• Model: Iris 17A 16GW432 - Stern-Radio Staßfurt, VEB, RFT

• Shape
• Tablemodel, low profile (big size).

• Notes
• 43-cm-TV mit VHF-Band I/III-Tuner nach CCIR B. Röhren teilweise mehrfach vorhanden; Fernbedienungsanschluss, Chassis auch in Fernsehmusiktruhe FSR 4302 eingesetzt.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
