- Country
- Germany
- Manufacturer / Brand
- Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG
- Year
- 1988/1989
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 74484
-
- alternative name: Phonetika Radio Berlin, VEB; Berlin, (Ostd.)
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 4
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 465/10700 kHz
- Tuned circuits
- 5 AM circuit(s) 4 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 220/7,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.4 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Jade SR 30 - Stern-Radio Berlin, VEB, RFT,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 200 x 128 x 48 mm / 7.9 x 5 x 1.9 inch
- Notes
- Der Koffersuper Jade SR 30 ist eine Gemeinschaftsentwicklung von Stern Radio Berlin und Unitra (Polen). Der UKW- Bereich ist bis 108 MHz erweitert, für MW und LW ist eine Ferritantenne, für UKW ist ein Teleskopstab eingebaut Je ein Piezofilter für AM und für FM. Über einen Kopfhörer ist Stereowiedergabe möglich. Vier Schaltkreise, TDA1220B als ZF- Verstärker, MC1309 als Stereo- Decoder und 2 x UL1482K als NF- Endstufe. Bei Lautsprecherbetrieb wird eine Ausgangsleistung von 0,4 Watt erreicht. Ein Netzteil ist eingebaut.
- Net weight (2.2 lb = 1 kg)
- 0.8 kg / 1 lb 12.2 oz (1.762 lb)
- Price in first year of sale
- 350.00 DM
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Literature/Schematics (1)
- Service-DVD Funkverlag B. Hein
- Author
- Model page created by Michael Seiffert. See "Data change" for further contributors.
- Other Models
-
Here you find 234 models, 216 with images and 175 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG
Collections
The model Jade is part of the collections of the following members.
Forum contributions about this model: Stern-Radio Berlin,: Jade SR 30
Threads: 1 | Posts: 4
Ich fand in einer Versteigerung in Tschechien das Radio
RT432.

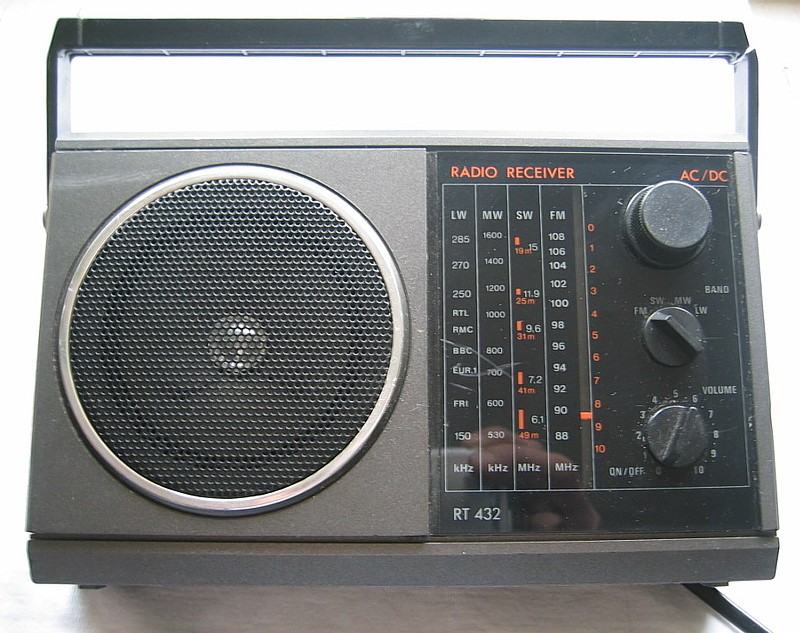

Dieses sieht vom Aufbau her und von den Abmessungen dem Jade sehr ähnlich.
Laut Verkäufer soll es sich um ein Produkt von TESLA handeln.

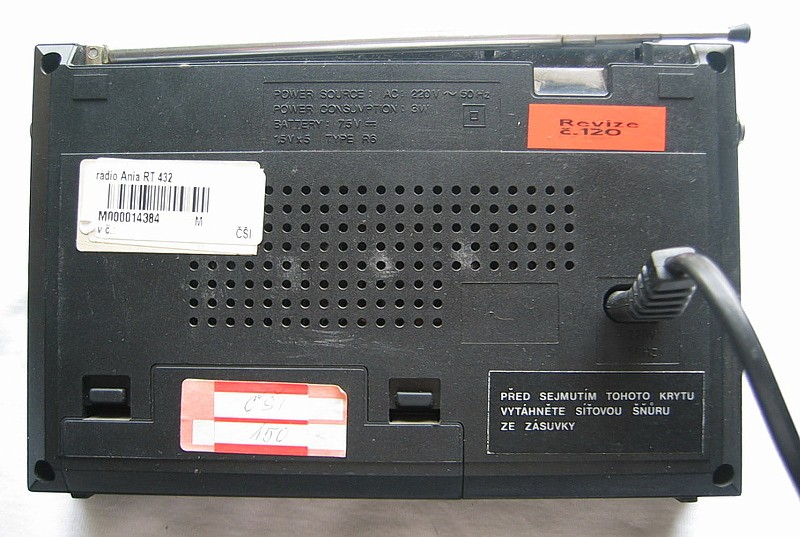

Es könnte ja auch bei Stern Radio Berlin produziert worden sein ? bzw beim polnischen ELTRA .... Die Beschriftung auf der Rückseite, Schild unten, ist in tschechisch.
Auch bei google habe ich keine Infos zu diesem Gerät gefunden. Es könnte ja auch ein Nachbau aus Fernost sein?

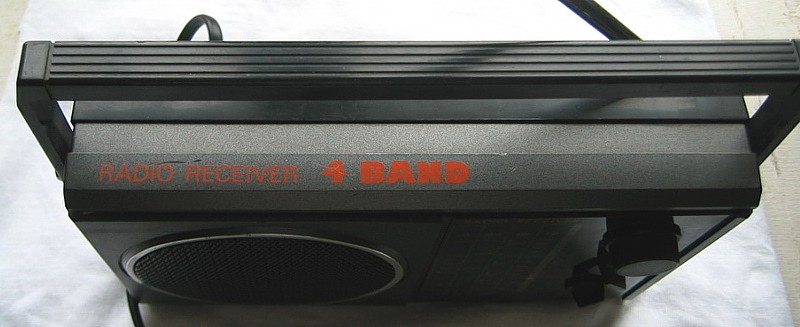

Mein Verdacht bei Bild3, wie die Beschriftung gemacht ist.
Wer weiß mehr ?
Attachments
- RT432 Frontseite (160 KB)
- CS_Tesla_RT432_hinten (129 KB)
- RT432 oben (63 KB)
Wolfgang Lill, 13.Mar.11
