• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG

• Year
• 1988–1990

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 102652

• • alternative name: Phonetika Radio Berlin, VEB; Berlin, (Ostd.)

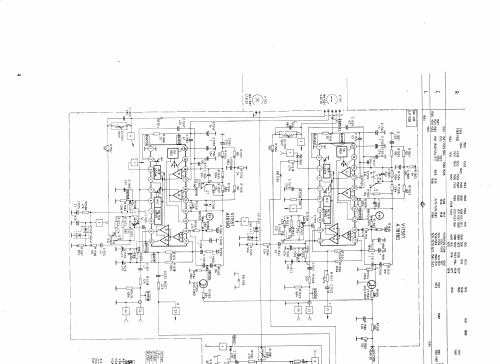

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/ 10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / 6 × 1,5 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: SKR720 - Stern-Radio Berlin, VEB, RFT,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 400 x 85 x 185 mm / 15.7 x 3.3 x 7.3 inch

• Notes

• Weiterentwicklung vom SKR700; gleiche technische Daten, jedoch Platine mit SMD- Bauelementen bestückt.
  Laufwerk MU300.
  UKW von 87,5 bis 108 MHz,
  Kurzwelle von 5,8 bis 18,5 MHz,
  7 ICs, 2x 1,5 Watt bei Batteriebetrieb,
  2x 2 Watt bei Netzbetrieb.
  Zwei eingebaute Mikrofone, Bandsortenumschaltung.

• Net weight (2.2 lb = 1 kg)
• 3.2 kg / 7 lb 0.8 oz (7.048 lb)

• Price in first year of sale
• 1,540.00 DM

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Mario Spitzer. See "Data change" for further contributors.
