Steracord KR450

• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG

• Year
• 1982/1983 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 80317

• • alternative name: Phonetika Radio Berlin, VEB; Berlin, (Ostd.)

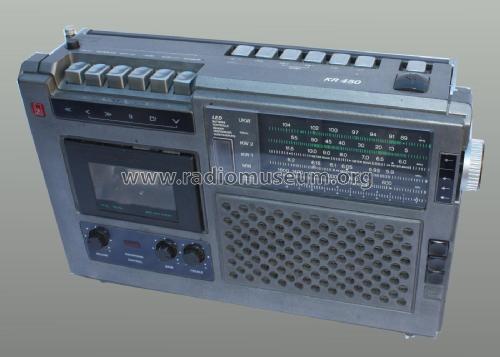

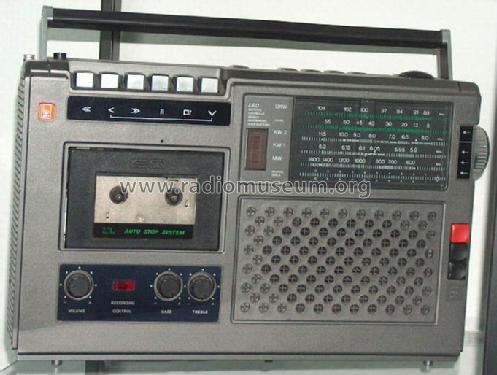

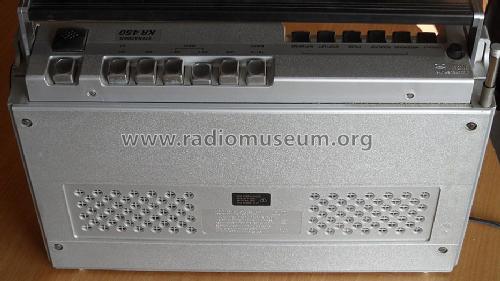

• Picture

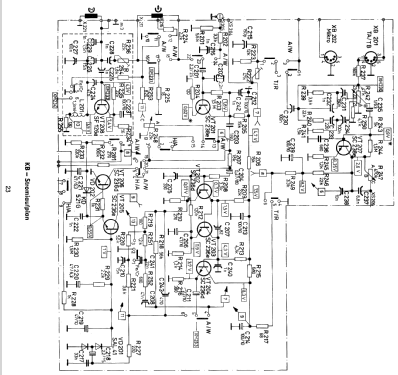

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 19

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 9/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Steracord KR450 - Stern-Radio Berlin, VEB, RFT,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 340 x 225 x 85 mm / 13.4 x 8.9 x 3.3 inch

• Notes
• 2 IC. Vier Schaltkreise für ZF, NF, LED- Zeile und Drehzahlregelung. Zwei LED auf Zeiger (AM/FM) LED-Zeile zur Abstimmung, Aussteuerung und Batteriekontrolle.

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Price in first year of sale
• 1,160.00 DM

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
