• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG

• Year
• 1971–1974

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 102522

• • alternative name: Phonetika Radio Berlin, VEB; Berlin, (Ostd.)

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• GF122 GF126 GF126 GF126 МП20 SC206 GD170 GD170 GA100 GA101 GY109

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 3 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

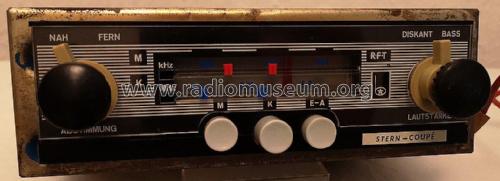

• Model: Stern-Coupé A140 - Stern-Radio Berlin, VEB, RFT,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 185 x 62 x 130 mm / 7.3 x 2.4 x 5.1 inch

• Notes
• Induktive Abstimmung. MW 5 Kreise fest, 3 variabel; KW nur 49 m Band, 8 Kreise fest, 1 variabel.

• Net weight (2.2 lb = 1 kg)
• 1.8 kg / 3 lb 15.4 oz (3.965 lb)

• Price in first year of sale
• 415.00 DM

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• Funkamateur 3/1972

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
