Stern-Recorder 1612PUR

• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG

• Year
• 1975–1977 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 77963

• • alternative name: Phonetika Radio Berlin, VEB; Berlin, (Ostd.)

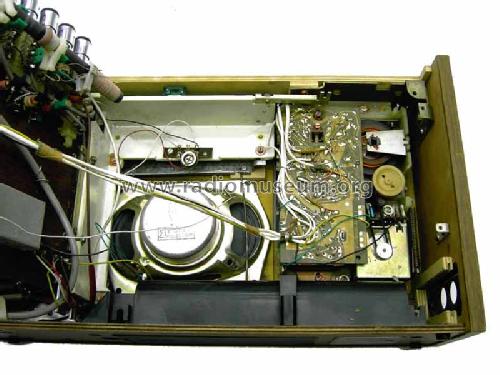

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 19

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 5 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Dry Batteries / 9(6x1,5)/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Stern-Recorder 1612PUR - Stern-Radio Berlin, VEB, RFT,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 375 x 215 x 100 mm / 14.8 x 8.5 x 3.9 inch

• Notes
• PUR= Polyurethan-Schaumstoff-Gehäuse (Messeneuheit). Aus dem Grundgerät R160 weiter entwickelt. 6xR20 Batterien (Monozellen), Netzteil intern, getrennte H/T-Regelung, automatische Aussteuerung der Aufnahme, bei Netzbetrieb Erhöhung der Ausgangsleistung von 1VA auf 2VA.

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Source of data
• Radiokatalog Band 2, Ernst Erb
