• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG

• Year
• 1969 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 315928

• • alternative name: Phonetika Radio Berlin, VEB; Berlin, (Ostd.)

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• GF130 GF130 GF130 GC101 GC116 GC301 GC301 GF132 GF131

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; Export model

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

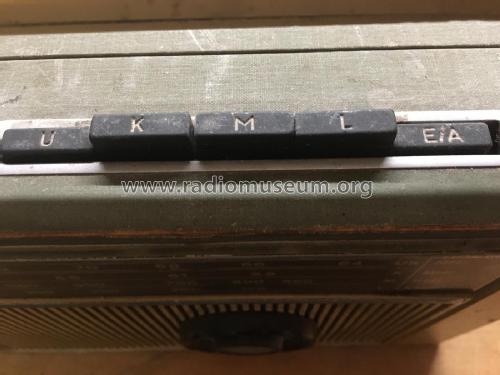

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 6 x 1,5 oder 2 x 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

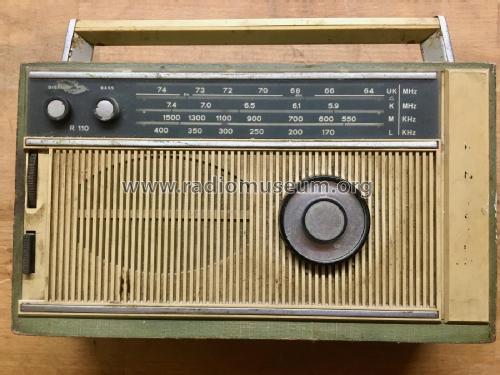

• Model: Stern Transistor R110 [OIRT] - Stern-Radio Berlin, VEB, RFT,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 280 x 170 x 81 mm / 11 x 6.7 x 3.2 inch

• Notes

• Wurde z. B. nach Polen exportiert und hat deshalb das OIR(T) Band von 63,5 bis 74,3 MHz

  Siehe auch Inlandversion R110 mit CCIR-Band

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
