Dublette zu ID=16575 Ausführung I
Stern-Radio Leipzig, VEB, - vorm. Opta-Radio AG (Ostd.)
- Country
- Germany
- Manufacturer / Brand
- Stern-Radio Leipzig, VEB, - vorm. Opta-Radio AG (Ostd.)
- Year
- 9999/9999
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 16573
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Number of Transistors
- Semiconductors
- Tr.Gl.=Metal-rectif.
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Dublette zu ID=16575 [Ausführung I] - Stern-Radio Leipzig, VEB, -
- Notes
- RFT-Einheitssuper, in Leipzig entwickelt und anfangs dort auch produziert, später in Stern-Radio Staßfurt und Funkwerk Dresden gefertigt.
- Price in first year of sale
- 250.00 DM
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Lange-Nowisch
- Mentioned in
- Funk-Technik (FT) (4907)
- Literature/Schematics (1)
- Die Geschichte der Rundfunkindustrie der DDR Band 1 1945 - 1967
- Literature/Schematics (4)

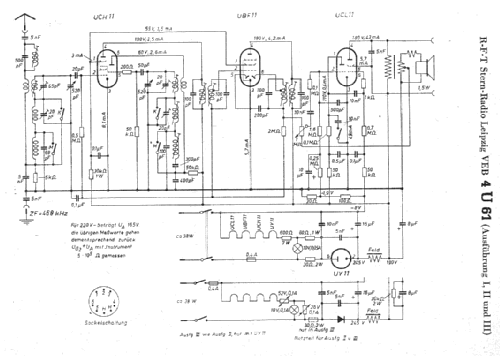

- -- Schematic
- Picture reference
- Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.
