Einschub-Empfänger 11E92S

• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Rochlitz, VEB, RFT, (Ostd.) - vorm. Graetz AG

• Year
• 1956–1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 70885

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 EF89 ECH81 EF89 EM11 EF89 EAA91 ECL81 EZ80

• Main principle
• Superhet with RF-stage; ZF/IF 468/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 9 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

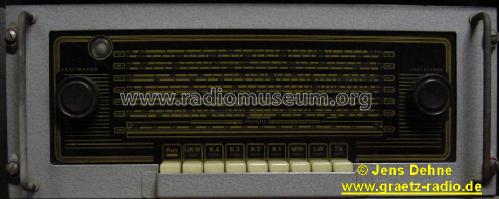

• Model: Einschub-Empfänger 11E92S - Stern-Radio Rochlitz, VEB, RFT

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 520 x 200 x 320 mm / 20.5 x 7.9 x 12.6 inch

• Notes

• Einschubempfänger; 4 KW-Bereiche 15 m bis 74 m, UKW-Tuner mit Variometerabstimmung, AM HF-Vorstufe, AM 3-fach abgestimmt.

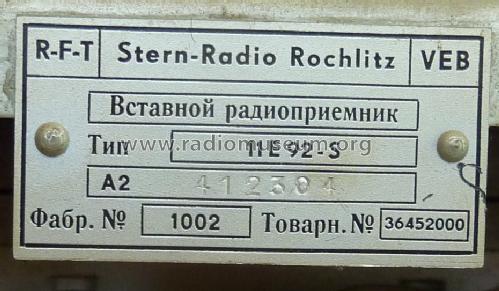

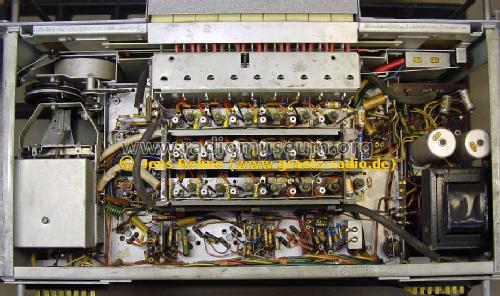

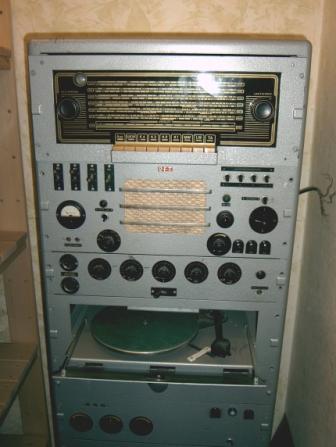

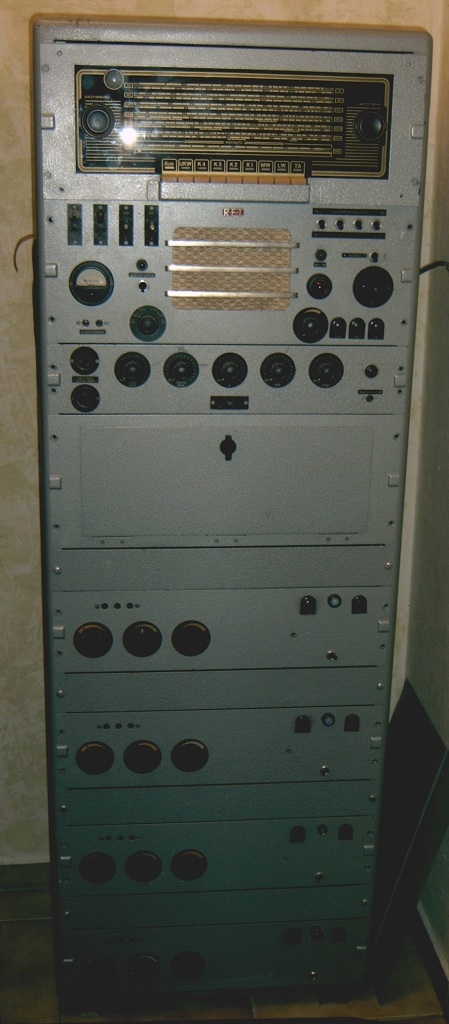

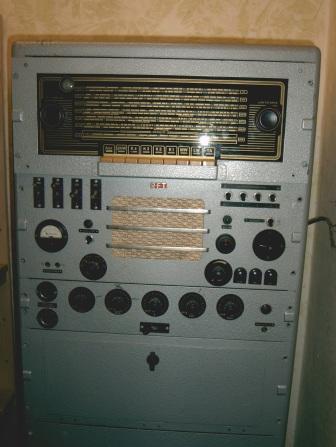

  Chassis (Gestelleinschub) für für ELA-Anlagen Funkwerk Kölleda, z.B. Gestellzentrale 8721 oder Verstärkergestell VG50/100.

• Net weight (2.2 lb = 1 kg)
• 13 kg / 28 lb 10.1 oz (28.634 lb)

• External source of data
• Jens Dehne

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Jens Dehne. See "Data change" for further contributors.
