• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Rochlitz, VEB, RFT, (Ostd.) - vorm. Graetz AG

• Year
• 1951 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 70892

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH11 UBF11 UEL51 UM11

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

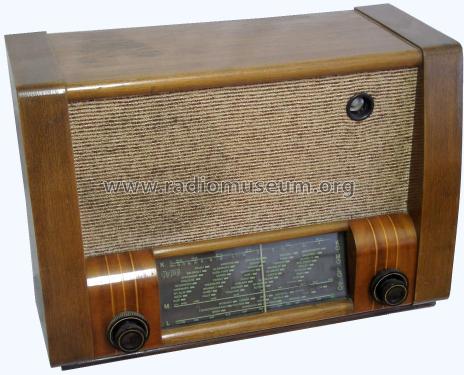

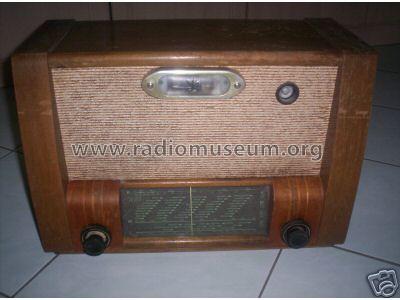

• Model: RFT-Super 5U61 - Stern-Radio Rochlitz, VEB, RFT

• Dimensions (WHD)
• 500 x 340 x 230 mm / 19.7 x 13.4 x 9.1 inch

• Notes

• Wellenschalter drehbar rechts über Senderwahl, auch Tonabnehmer; Klangregler unter Lautstärkeregler links; vorbereitet für UKW-Vorsatzgerät 1U14.

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Die Geschichte der Rundfunkindustrie der DDR Band 1 1945 - 1967

• Author
• Model page created by Jens Dehne. See "Data change" for further contributors.
