SC1900

• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG

• Year
• 1986–1989

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 92788

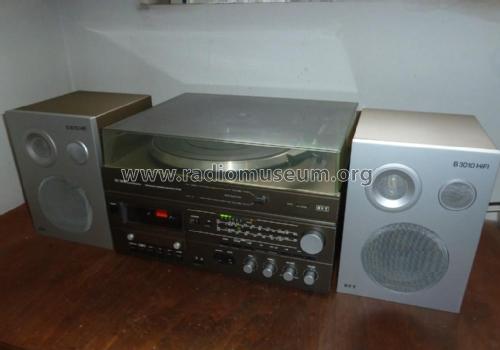

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 25

• Semiconductors
• SC236 SC237 SC239 SC308 SD335 SC307 SF126 VQA38 VQA28 KB213 SAY30 SY345 SY360 SY351 SA403 MAA550 A4100D A4510D B3170 A1818D B306D A277D A273D A274D A2030 B306D

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Other Combination - see Notes

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 20 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: SC1900 - Stern-Radio Sonneberg, VEB,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 390 x 230 x 320 mm / 15.4 x 9.1 x 12.6 inch

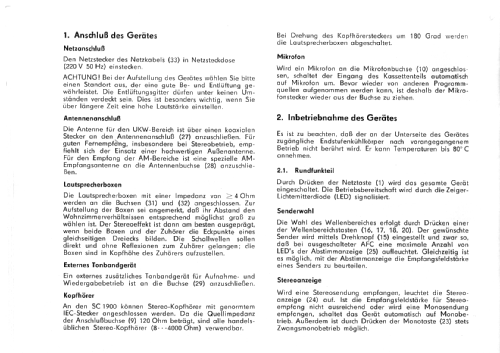

• Notes

• Kombination aus Stereo-Casseiver SC1800 (mit Kassetten-Laufwerk MU300) und Plattenspieler MA024.

  Frequenzgang Fe₂O₃ 63-10000 Hz, CrO₂ 40-12500 Hz
  Phonolaufwerk 31,5 Hz-14000 Hz
  Abtastsystem CS24 oder CS29

• Net weight (2.2 lb = 1 kg)
• 10.6 kg / 23 lb 5.6 oz (23.348 lb)

• Price in first year of sale
• 2,300.00 DM

• Source of data
• - - Data from my own collection

• Author
• Model page created by Jörg Kulbe. See "Data change" for further contributors.
