Schwarzburg - Шварцбург Super 65/54W - Супер 65/54W

• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG

• Year
• 1953/1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 223332

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH81 EBF80 EBF80 6V6_DDR

• Number of Transistors

• Semiconductors
• Selenium-Rectifier

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 150; 220 Volt

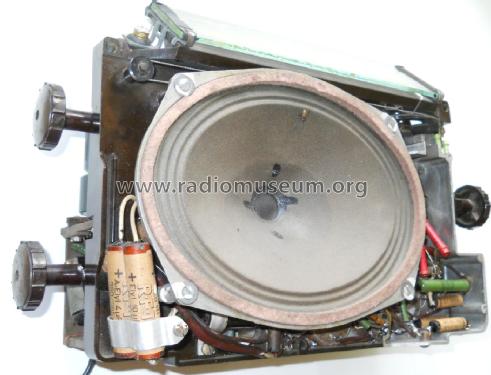

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

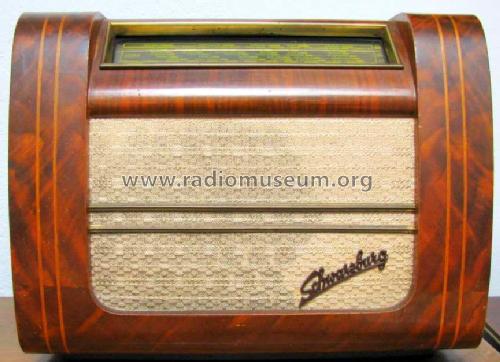

• Material
• Wooden case

• from Radiomuseum.org
• Model: Schwarzburg - Шварцбург Super 65/54W - Супер 65/54W - Stern-Radio Sonneberg, VEB,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

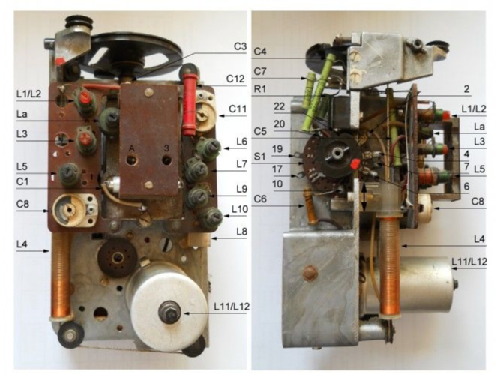

• Exportmodell für Bulgarien. Variometer-Abstimmung. Rückwand mit zusätzlicher Beschriftung mit kyrillischen Buchstaben.

• Author
• Model page created by Simeon Nikolov. See "Data change" for further contributors.
