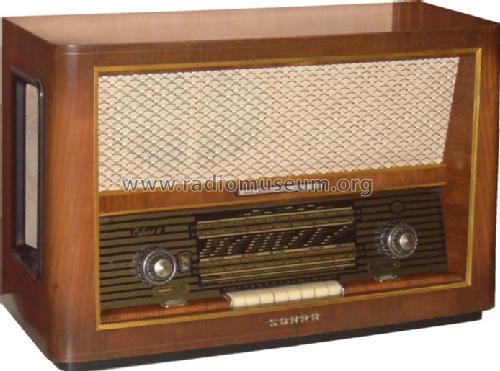

Sonra Erfurt 2 8118/58 GWU-3D

• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 222445

• Picture

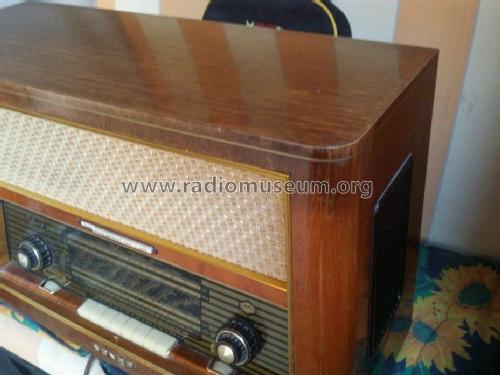

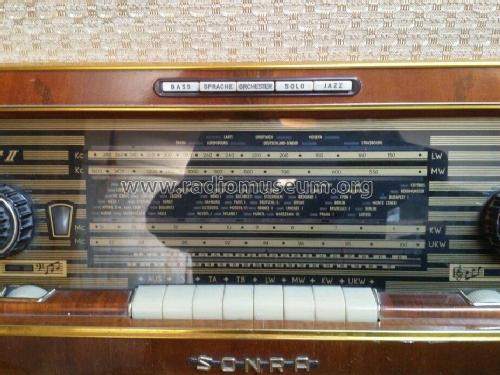

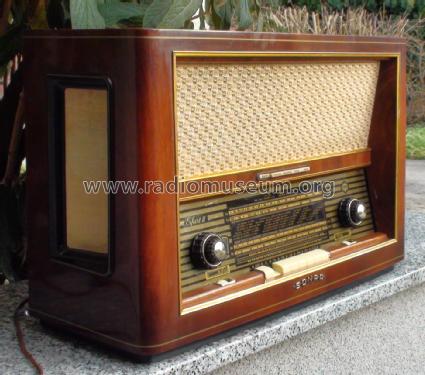

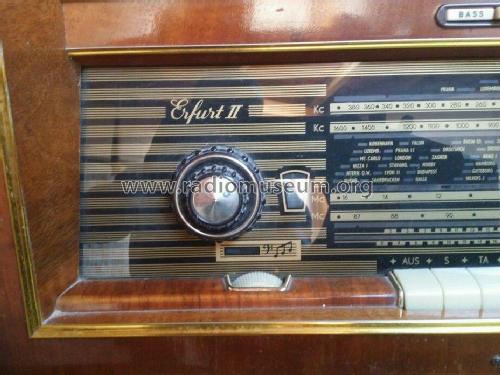

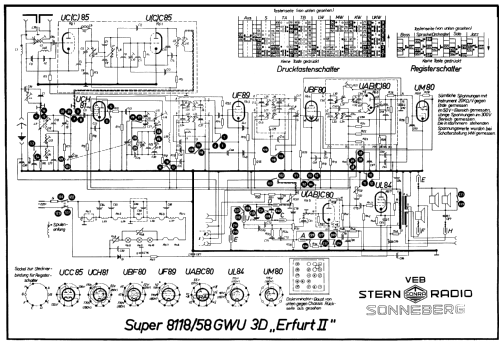

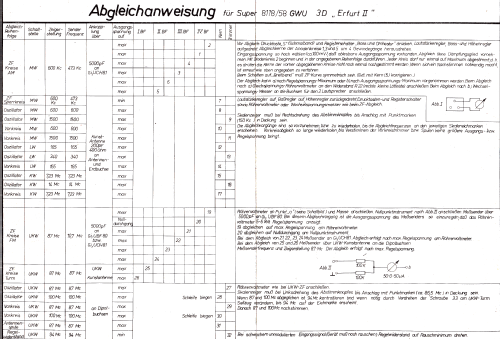

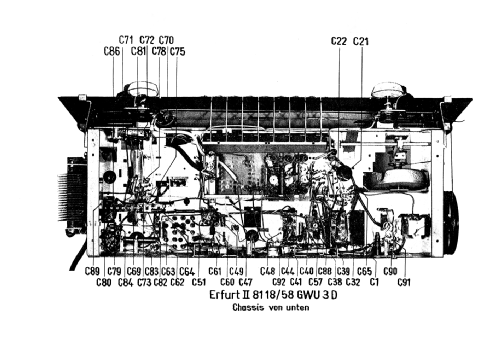

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• UCC85 UCH81 UF89 UBF80 UM80 UABC80 UL84

• Number of Transistors

• Semiconductors
• Selengleichrichter

• Main principle
• Superheterodyne (common); ZF/IF 473/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Sonra Erfurt 2 8118/58 GWU-3D - Stern-Radio Sonneberg, VEB,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 680 x 435 x 265 mm / 26.8 x 17.1 x 10.4 inch

• Notes

• Parallelgerät zum Stern-Radio Sonneberg Erfurt 2 8118/58 GWU-3D.
  Ab Ende 1957 bis Anfang 1960 Verwendung des Markenzeichen "SONRA" auf den Rückwänden und teilweise auf den Gehäusefronten. Bis auf die Bezeichnung SONRA sind die Geräte ident.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.

• Other Models

• Here you find 385 models, 312 with images and 288 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
