Stereo 5080 HIII2232 OIRT
Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
- Country
- Germany
- Manufacturer / Brand
- Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
- Year
- 1979 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 204473

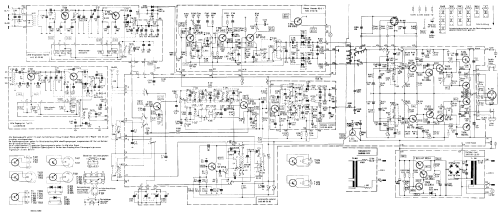

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Stereo 5080 HIII2232 [OIRT] - Stern-Radio Sonneberg, VEB,
- Shape
- Book-shelf unit.
- Notes
- Exportvariante OIRT für die Tschechoslowakei gebaut. Gehäuse und Chassis entsprechen dem Modell Stereo 5080.
Ausgänge TB, separate Boxen, Kopfhörer. Eingang TA. Linker und rechter Kanal mit Schieberegler separat regelbar.
- Author
- Model page created by Wolfgang Lill. See "Data change" for further contributors.
